- 产品详情
- 产品参数
特点Characteristic
本机以PLA+PBAT+ST、PLA+PBAT+MD、全生物降解材料、可降解材料、HDPE、LDPE等材料的筒膜。可生产本色及印刷背心袋。采用电脑编程控制系统、伺服电机自动定长，从送料、封底、切断、冲口输送一次性完成。该机器主要加工连卷袋，可在无人操作下进行封口、自动换卷。采用了无拉力设计，使机器在高速运转时封口处更稳定、牢固。有效节省了员工、厂地。
The machine is made of PLA PBAT ST, PLA PBAT MD, all biodegradable material, degradable material, HDPE, LDPE and other materials. Can produce natural color and printing vest bag. Using computer programming control system, servo motor automatic length, from feeding, sealing, cutting, punching conveying one-time completion.
The machine is mainly used for processing continuous coil bag, which can seal and automatically change the coil under unmanned operation. Adopted no-tension design, make the machine in high-speed operation more stable seal, firm. Effectively saves the staff, the factory land.
主要技术参数：
型号 | Model | YF-HJ400×2 |
制袋宽度 | Max width of bag | 80-400mm |
制袋长度 | Max length of bag | 100-1200mm |
制袋速度 | Thickness of bag | 60-220×2pcs/min |
制袋厚度 | Bag making speed | 0.005-0.015mm |
空气压力 | Air compressor | 10P |
总功率 | Total power | 20kw |
实际耗电 | 6kw/h | |
电源 | Supply voltage | Ac380V/50Hz |
机器重量 | Machine weight | 2500kg |
外形尺寸 | Dimensions | 6500×2960×1760mm |
样品图片：
平口连卷垃圾袋、宠物垃圾袋、超市保鲜袋
配置详情：
、
（放料架） | 采用独立放料送料控制系统 Adopt independent feeding and delivery control system |
（储料架） | 提前储料预留上料时间不影响生产进度 Advance material storage to leave time for loading does not affect production progress. |
、
（电眼跟踪部分） | 用于精准定位与纠偏，优化生产参数 For precise positioning and deviation correction, optimizing production parameters |
（烫刀部分） | 采用双面铜刀使其热封效果稳定，缩短封口时间，适应不同材料 The use of double-sided copper blades makes its thermal sealing effect stable, shortens the sealing time, and adapts to different materials |

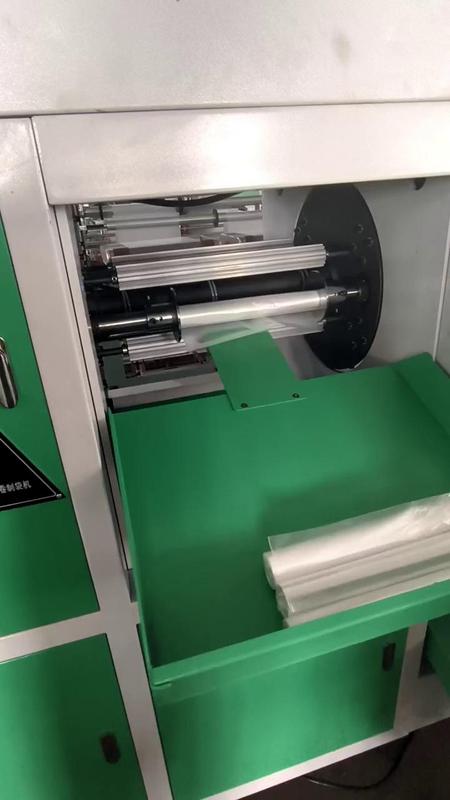

（收卷切断部分） | 由牵引机构、收卷机构组成 Composed of traction mechanism and winding mechanism. |
（成品部分） | 双通道出料口 Dual-channel discharge port |
（电箱） | 台湾阳明电器和正泰电器一线品牌具有高质量材料、安全性能高 Taiwan Yangming and Zhengtai electrical appliances first-line brands have high-quality materials and high safety performance. |
（控制面板） | 按键触平一起简单易操作 Touch keys flat and simple to operate |
本机视频：
